Aluzinc steel sheet

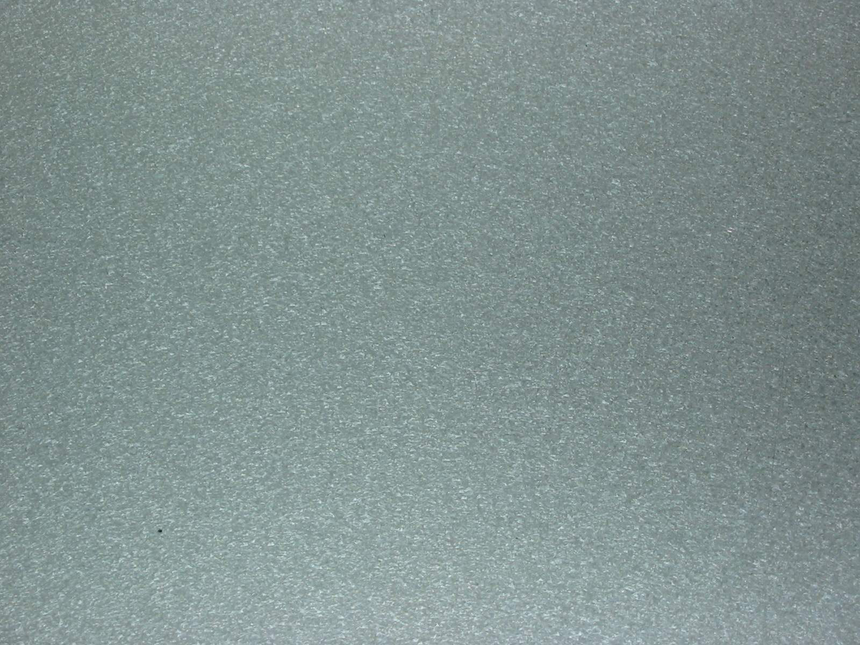

Aluzinc cladding plate of aluminum alloy structure of zinc by 55% aluminum, 43.4 percent zinc and 1.6 percent in the Silicon 600 ℃ high temperature and curing, the entire structure from aluminum - iron - silicon - zinc, the formation of the quaternion dense crystals To form a strong and effective to prevent corrosion-wear through the barrier. The products meet ASTM A792/A792M. | Mechanical Properties |
|
|
|
|
|
| Class | T.S | Y.P | EL | HrB | Commercial Quality | 36~44 | 28~34 | 30~36 | 55~65 | Drawing Quality | 29~35 | 18~22 | 36~42 | 36~48 | Structural （ Gr-E ） Quality | 66~72 | 65~71 | 4~8 | 80~90 | Product Specifications |
|
|
|
|
|
| Classification | Range |
|
| Base metal | CQ ， DQ ， Gr-E |
|
| Thickness | 0.3~2.5mm |
|
| Width | 600~1600mm |
|

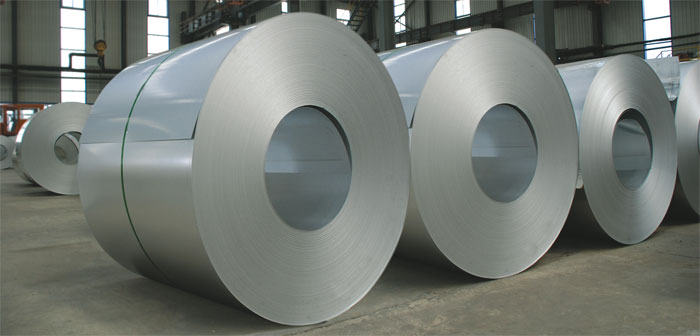

| Coil weight | 2~25ton |
|
| Coating weight | 100~200g/ ㎡ |
|
|
|
|
|
|
| Coating designation |
| Total both sides,oz/ft2 |
| Total both sides, g/m2 |
|
| AZ30/AZM100 |
| 0.26-0.3 |
| 85-100 |
|
| AZ35/AZM110 |
| 0.3-0.35 |
| 95-110 |
|
| AZ40/AZM120 |
| 0.35-0.4 |
| 105-120 |
|
| AZ50/AZM150 |
| 0.43-0.5 |
| 130-150 |
|
| AZ55/AZM165 |
| 0.5-0.55 |
| 150-165 |
|
| AZ60/AZM180 |
| 0.52-0.6 |
| 155-180 |
|
| AZ70/AZM210 |
| 0.6-0.7 |
| 180-210 |
|
|
Excellent durability，Excellent thermal reflectivity，Excellent heat resistance，Economic advantage | Aluminum-zinc alloy coated steel has more unit weight can be used than galvanized steel plate under the area |
Product Use |
|
|
|
|
| Aluminum-zinc alloy coated steel usage |
|
|
|
|
|
| Mechanical and electric equipment |
|
|
|
|
|
| Computer shell, communication equipment, electric box, electric cabinet, etc. |
|
|
|
|
|
| Electric appliances |
|
|
|
|
|
| Oven, washing machine, refrigerator, dehumidifying machine, video recorder, water heater etc. |
|
|
|
|
|
| Building material |
|
|
|
|
|
| Floor plate, ceiling plate, balcony, warehouse, roof, compartment, wall |
|
|
|
|
|
| Transpotation industry |
|
|
|
|
|
| Vehicle internal plate, bus and truck backseat plate, transportation system and oil tank etc. |
|
|
|
|
|
| Agricultral equipment |
|
|
|
|
|
| Large barn, storage room, green house, drying machine for agriculture, flume and breeding utensil etc. |
|
|
|
|
|
| Furniture and others |
|
|
|
|
|
| Automatic vending machine, recreation machine, chimney pipe, office equipment and garage etc. |
|
|
|
|
|
|
|
|
