Aluminum corrugated sheet

The product we supply:

Type

Aluminum corrugated sheet

Thinckness

0.1mm-3mm

Widthness

100mm-2000mm

Length

2000mm-7500mm or coil or as customer

Standard

ASME, ASTM, EN ,BS,GB,DIN, JIS, etc

Alloy

1050 1060 1061 1070 1100 3003 3004 3005 3105 5005 5052 5083 5754 5A03 5A06 6061 6063 8011

Application range

electronic, machine manufacturing industry, traffic, transportation, package, printing, electonic and home appliance, mechanism and building decoration……

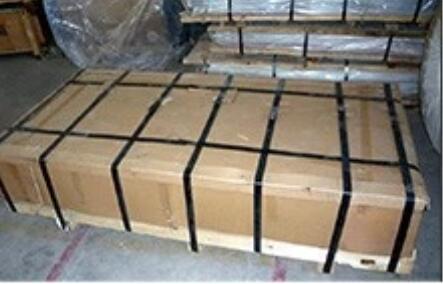

Packaging

Standard export sea-worthy packing

Delivery time

According to requirement of clients

Productivity

500 tons/month

Note

We can produce other standard as the customers’ requirement

Specification of normal type:

Aluminum sheet or coil

Alloy No.

1060

Condition

H 14 or H 24 (Half Rigidity)

Chemical Element

Si

Fe

Cu

Mn

Mg

Cr

0.25

0.35

0.05

0.03

0.03

-

Ni

Zn

Ti

Zr

Al

other

-

0.05

0.03

-

99.6

0.03

Stretching Resistance

85~120Mpa

Extensibility

(50mm) ≥ 3%

standard

GB/T8544-97 ASTM B209 QB/HL 002-2003

Aluminum sheet or coil

Alloy No.

3003

Condition

H 14 or H 24 (Half Rigidity)

Chemical Element

Si

Fe

Cu

Mn

Mg

Cr

0.6

0.7

0.05-0.2

1.0-1.5

-

-

Ni

Zn

Ti

Zr

Al

other

-

0.1

-

-

remain

0.15

Stretching Resistance

135~175Mpa

Extensibility

(50mm) ≥ 3%

standard

GB/T8544-97 ASTM B209 QB/HL 002-2003
