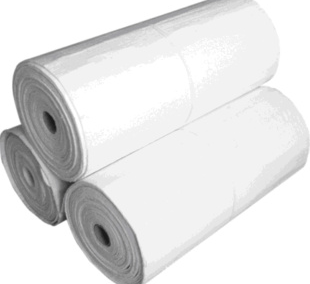

Aerogel is the lowest thermal conductive of any present-recognized solid. With this super nano-granule, Aerogel Blanket is a flexible, environmental-friendly, easy-handled insulation material which makes it the leading product in the industry.

Physical Properties

Package Form

Roll

Thickness

3mm, 6mm, 10mm

Width

910mm,1500mm

Thermal Conductivity

0.016w/m·k (25℃)

Max Temp. for Usage

-196℃ - 650℃

Density

40kg/m3 - 220kg/m³

Hydrophobicity

Wholly hydrophobic

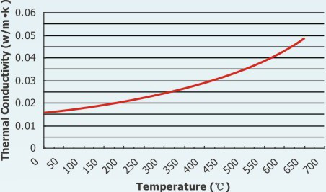

Thermal Conductivity

               GB10295-2008 Results

Advantages

·Superior Insulation Performance

2~5 times better than traditional insulation products with longer service life.

·Reduced Thickness

For the same insulation performance, only a fraction of thickness of traditional material.

·Hydrophobic and Fireproof

Repels water from penetrating inside. Fire-proofness rating A1.

·Easy Handling

Lightweight, easily cut and sewn to fit for complex, curve and required shapes and surfaces. Less working time and labor to install.

·Transportation Costs Savings

Reduced packing volume and lower weight can greatly cut down logistics costs.

Main Applications

·Prefabricated pipe with insulation

·Tanks,vessels and other equipments

·Steam pipelines in petroleum production

·Pipelines in thermal power plants, petrochemical plants and chemical plants

·Medium and high temperature industrial furnaces and removable escape capsules

·Automobile,high-speed train,and subway

·Buildings and constructions
