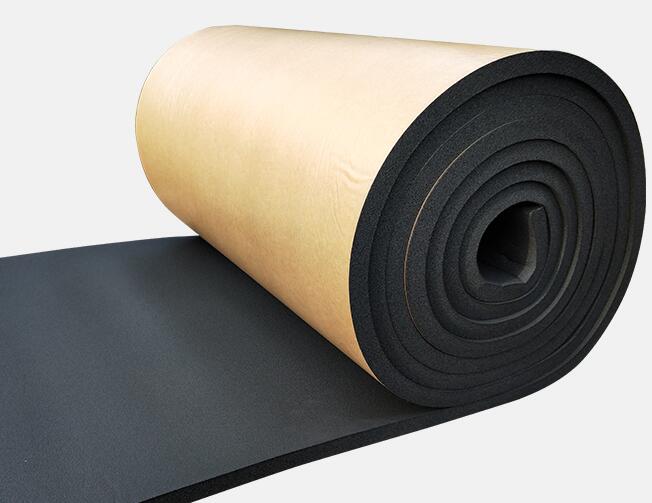

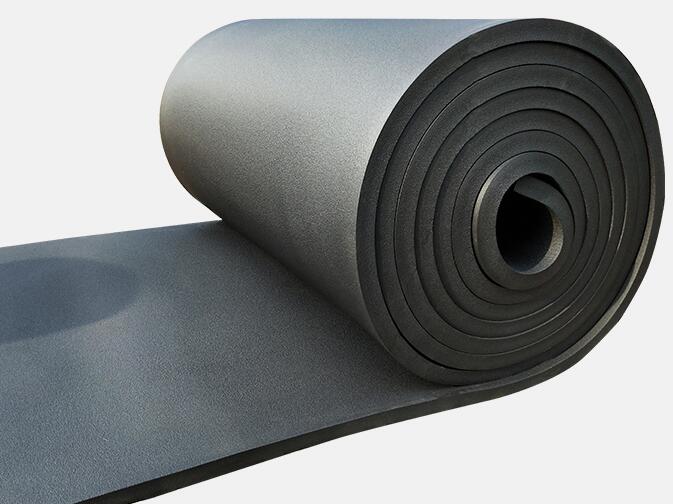

Closed -cell electronic nitrile rubber insulation is no moisture absorption,antierosion and extremely tough. It is mainly applicable to central airconditioner system, building, ship, automobile,etc. Because of its softness and toughness, it can be used in heat insulating and fireproof of parts with irregular shape, such as valve,elbow,tee joint,etc.

Technical Data Sheet

Properties

Physical Index

Description:

Rubberflex foam insulation

Property

Value

Test method

Temperature range

Minimum line

-40℃

Maximum line

+105℃

Flat surfaces and tape

+85℃

Thermal conductivity

at -20℃

0.031 W/(m.K)

at 0℃

0.033 W/(m.K)

Bs 874 Part 2 1986

at +20℃

0.035 W/(m.K)

Water vapour permeability

Moisture resistance factor μ

μ≥4500

DIN 52 615

(ISO 9346)

0.14 μgm/(N.h)

BS 4370 Part 2 1973

Fire performance

Class 1,

British standard BS 476

Surface spread of flame,

zero surface spread of flame

Part 7:1987

Behaviour in fire,

self-extinguishing type

Conditions similar to BS 476 part 20 1987

does not generate flaming droplets

12.7-38mm pipe diameter with 19mm

Wall penetrations,

180 minutes

Class 1 through a 250mm wall

Noise reduction,

acoustic level to 30 db(A)

Resistance to

Building materials

very good

Resistance to chemicals,

consult product test list

Water absorption value

<18%
