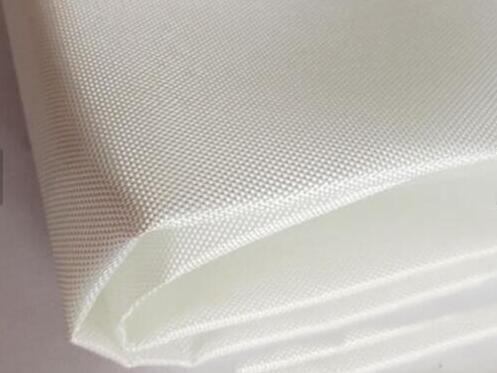

Silica cloth is a high performance textile fabric that is comprised of high purity, high strength amorphous silica fibers, woven into a strong, flexible fabric designed for use where severe temperature conditions exist. It is an ideal replacement for asbestos product used for thermal insulation and heat protection. It will not burn, rot, mildew or deteriorate and resist most acids. It will keep good state when it works at 1000oC for a long time.

2. Applications

--Used for welding/cutting protection

--Molten metal splash protection

--Heat and flame shielding, stress relief, insulation

--Hose and cable protection and emergency fire blankets

3.Product Performance

1. SiO2 ≥96% 2. Hot drain quantity <10%. 3. Organizational structure: satin

Style

Mass

Density

Thickness

Width

Tensile strength

Weave

(g / m²)

(ends/cm)

( mm )

( cm )

(N/25¡á100mm)

Warp

Weft

Warp

Weft

BWT12×12-100

240

12

12

0.25

100

≥250

≥180

Plain

BWT20×12-100

400

20

12

0.4

100

≥450

≥400

Satin

BWT18×15-92

520

18

15

0.65

92

≥530

≥430

Satin

BWT19×15-100

600

19

15

0.75-0.8

100

≥580

≥480

Satin

BWT22×14-92

1100

22

14

1.2-1.3

92

≥680

≥530

Satin
