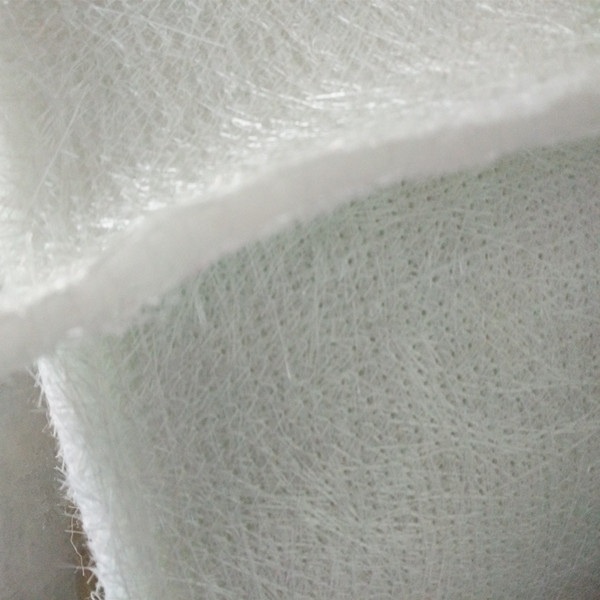

Core combination mat consists of a synthetic non-woven core, sandwiched between chopped strands (excluding binder) or multiaxial fabric, and stitch them together.

Applications

The core mat is compatible with Polyester resin, Vinyl resin, Epoxy resin and Phenol resin etc. And it can be used for RTM, vacuum forming, molding, injection molding and SRIM molding process. It can be used for manufacturing cabin cover, auto, train parts, etc.

Features

1. High degree of deformability in order to adaptable to the mould cavities

2. Accepts variation of mould cavity thickness

Specification

Chopping layer density:200g/㎡-800g/㎡

PP/PET layer density:150g/㎡-250g/㎡

CF300/P180/300

780

300

180

300

CF450/P180/450

1080

450

180

450

CF600/P180/600

1380

600

180

600

Multiaxial Core Mat

Specification

Density (g/m2)

0° density (g/m2)

90° density (g/m2)

Core layer density (g/m2)

Chopping layer density (g/m2)

LTNM600/P180/300

1080

300

300

180

300

LTNM600/P180/600

1380

300

300

180

600

LTNM800/P180/450

1435

400

405

180

450

Packing

Product is manufactured in form of a roll wound on a paper tube and then packed in a plastic film and placed within a cardboard carton. Rolls can be loaded into a container directly or on pallets.

Storage

It is recommended that the fiber glass products should be stored in a cool and dry environment.  Recommended temperature range of storage is between 10 ~ 30 °C and relative humidity between 50 ~ 75%. The fiber glass should remain in the packaging until just prior to use.
