E-glass stitched mat

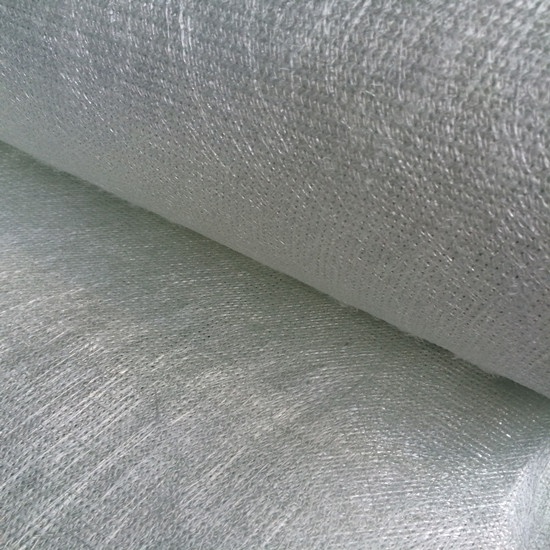

E-Glass Stitched Mat (450g/m2~900g/m2) is made by chopping continuous strands into chopped strands and stitching them together. The product has a maximum width of 2.6m.

Applications

This product can be used in manufacturing boat, tubes etc. It’s widely used in Pultrusion, Filament winding, Hand lay-up and Infusion.

Features

1. High strength, light weight;

2. Excellent spreading;

3. Excellent weight, good wet-out in resins;

4. Good moldability, good drapability and easy operation.

5. No chemical binder

Specification

Overall density (g/㎡)

Chop Density(g/㎡)

Polyester Yarn Density(g/㎡)

E300

309.5

300

9.5

E380

399

380

19

E450

459.5

450

9.5

E900

910

 900

  10

Packing

Stitched Mat should be wound onto a paper tube, wrapped with plastic film then protected by carton box. Lay the rolls horizontally.

Storage

Stitched Mat should be stored in a cool, dry, water-proof area. It is recommended that the room temperature and humidity be always maintained at 15℃ to 35℃ and 35% to 65% respectively. Please keep the product in its original packaging before being used, avoiding moisture absorption.
