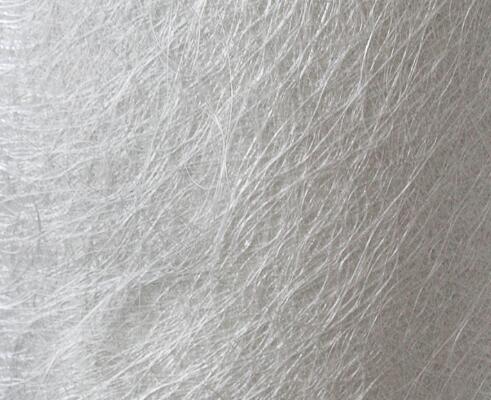

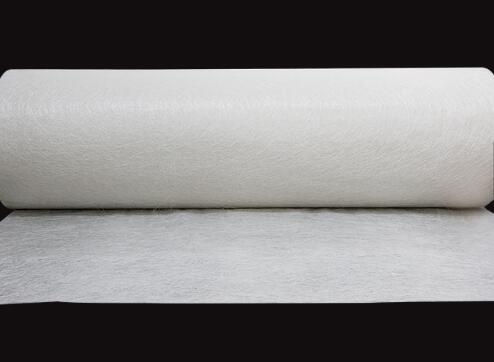

Continuous Filament Mat is made of continuous fiberglass strands randomly looped in multiple layers. The glass fibre is equipped with a silane coupling agent that is compatible with Up，Vinyl ester and epoxy resins etc and the layers held together with a suitable binder. This mat can be manufactured in many different areal weights and widths as well as in large or small quantities.

Product Features

1.Stable & different LOI guaratee various application in pultrusion, RTM, SRIM, compression, Lamination, etc.

2.Excellent agent guarantee various resin compatibility.

3.Very good adaptability in moulds of complex shapes.

4. Excellent property of die-cut.

5. Excellent mechanical property.

6. Easy to cut, splice and overlap with reduced waste.

7. Fast flow through.

Product Specification

CFM955-255

CFM955-300

CFM955-450

CFM955-600

CFM955-900

CFM985-255

CFM985-300

CFM985-450

CFM985-600

CFM981-450

CFM983-300

Fiberglass Type

ISO 2078

E-glass

E-glass

E-glass

E-glass

E-glass

E-glass

E-glass

E-glass

E-glass

E-glass

E-glass

Sizing

ASTM D578

Silane

Silane

Silane

Silane

Silane

Silane

Silane

Silane

Silane

Silane

Silane

Linear Weight of Basic Strands(TEX)

ISO 1889

25

25

25

25

25

25

25

25

25

25

25

Unit Weight(g/m2)

ISO 3374

225

300

450

600

900

225

300

450

600

450

300

Tensile Strength(N)

ISO 3342

70

100

140

160

270

/

/

/

/

/

/

Loss on lgnition(%)

ISO 1887

6

5.5

4.6

4.2

3.8

5

5

5

5

1

3

Moisture Content(%)

ISO 3344

0.2

0.2

0.2

0.2

0.2

0.2

0.2

0.2

0.2

0.2

Solubility in Styrene

Very Low

Very Low

Very Low

Very Low

Very Low

Low

Low

Low

Low

Low

Low

Resin Compatible

UP/VE/EP

UP/VE/EP

UP/VE/EP

UP/VE/EP

UP/VE/EP

UP/VE/EP/PU

UP/VE/EP/PU

UP/VE/EP/PU

UP/VE/EP/PU

UP/VE/EP/PU

UP/VE/EP/PU

Application / Process

Pultrusion

Pultrusion

Pultrusion

Pultrusion

Pultrusion

RTM/S-RIM

/Infusion

/Compression

RTM/S-RIM

/Infusion

/Compression

RTM/S-RIM

/Infusion

/Compression

RTM/S-RIM

/Infusion

/Compression

RTM/S-RIM

/Infusion

/Compression

RTM/S-RIM

/Infusion

/Compression

1) pull extruded material, and use continuous felt as the ring reinforcement material to make up for its deficiency.

Therefore, continuous felt is an indispensable reinforcement material for extruding extrusions.

2) RTM process, because the continuous felt has high adhesion strength, high volume of loose porosity,

moderate resin penetration rate and good erosion resistance, and is widely used in RTM technology.

3) automotive interior trim, continuous felt is mainly used for sun visor, rear window decorative plate, spare tire cover and fender.

4) dry type transformer, dry type transformer is mainly used for short cutting felt, but the continuous felt is higher than the

short cut felt, and the glass fiber continuous felt must be used on occasions and products with high intensity requirements.

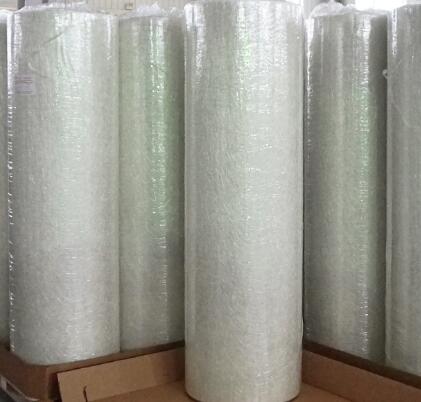

Storage

1. Ambient condition: a cool & dry warehouse is recommended for CFM.

2. Optimal storage temperature: 15℃~35℃.

3. Optimal storage humidity: 35%~75%

4. Pallet stacking: 2layers are maximum as recommended.

5. Prior to use, mat should be conditioned in the worksite for 24 hours at least to optimize performance.

6.Once contents of a package unit were partically used. the unit should be closed before next use.
