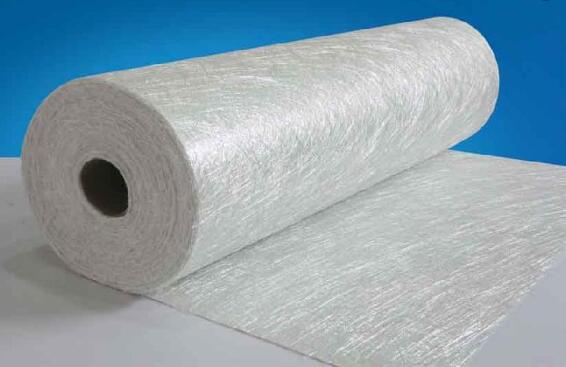

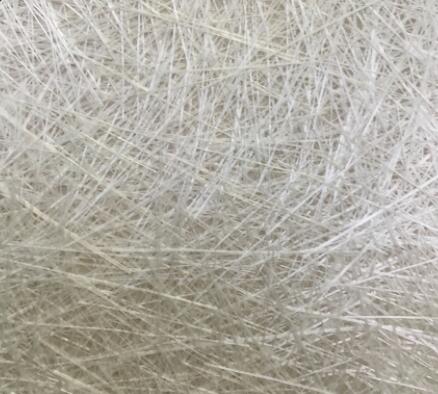

E-Glass Emulsion Chopped Strand Mat is made of randomly distributed chopped strands held tighter by a emulsion binder. It is compatible with UP, VE, EP resins. The roll width ranges from 50mm to 1270mm. special requirements may be available upon request.

Product Features:High tensile strength, allowing for use in hand lay-up process to produce large-area parts; No airborne fiber when operating; Good wet-through and fast wet-out in resins, rapid air lease; High mechanical strength; Superior acid corrosion resistance. Applications:hand lay-up, filament winding, compression molding and continuous laminating processes.  Product Features:Good conformability; Good wet-through and fast wet-out in resins, rapid air lease, reducing rolling out time and increasing productivity; Low resin consumption; High mechanical strength of the conposite product; Superior acid corrosion resistance. Applications:hand lay-up, filament winding, continuous laminating. It’s mainly used in hand lay-up, filament winding and compression molding processes. The typical FRP products are panels, tanks, boats, complete set of sanitary equipment, automotive parts, cooling towers, pipes etc.Some type is widely used in FRP handing lay-up technique,also in mechanical molding technique,e.g.RTM,winding mould pressing and so on.The typical products are various board,boat and water sport,complete sets of bathroom equipment,automobile parts,cooling tower,etc.

1. Uniform thickness, softness and hardness good.

2. Good compatibility with resin, easy completely wet-out.

3. Fast and consistent wet-out speed in resins and good manufacturability.

4. Good mechanical properties, easy cutting.

5. Good cover mold, suitable for modeling complex shapes.

6. Quick wetting and rapid air release,maximum molding productivity and cost-reducing.

7. Even thickness,consistent customer part quality.

8. Superb dry integrity, enhance productively and reduced materials losses during unrolling, cutting and piece handing.

9  Small roll diameters,tight rolls,safe and efficient material handling.

Property

Glass Type

Area Weight(%)

Moisture

Combustible

Breakage

 Content(%)

Content(%)

Strength(N)

EMC100

       E

  ±7.5

 ≤0.20

 14.0±1

 ≥50

EMC150

       E

  ±7.5

 ≤0.20

 8.0±1

 ≥70

EMC180

       E

  ±7.5

 ≤0.20

 5.0±1

 ≥80

EMC225

       E

  ±7.5

 ≤0.20

 4.4±1.31

 ≥80

EMC300

       E

  ±7.5

 ≤0.20

 4.0±1.31

 ≥100

EMC375

       E

  ±7.5

 ≤0.20

 3.8±1.31

 ≥120

EMC450

       E

  ±7.5

 ≤0.20

 3.7±1.31

 ≥140

EMC600

       E

  ±7.5

 ≤0.20

 3.5±1.31

 ≥160

EMC900

       E

  ±7.5

 ≤0.20

 3.3±1.31

 ≥200

Packaging

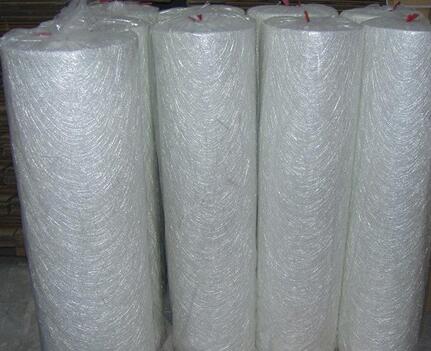

Each Chopped Strand Mat is wound onto a paper tube which has an inside diameter of 90mm. The roll outside diameter is approximately 265mm.Each roll is wrapped up in plastic film and then packed in a cardboard box. The rolls are stacked horizontally or vertically onto pallets. All pallets are stretch wrapped and strapped to maintain stability during transport.

Storage

Unless otherwise specified, chopped strand mats should be stored in a cool, dry, water-proof area. It is recommended that the room temperature and humidity be always maintained at 15℃to 35℃ and 35% to 65% respectively.
