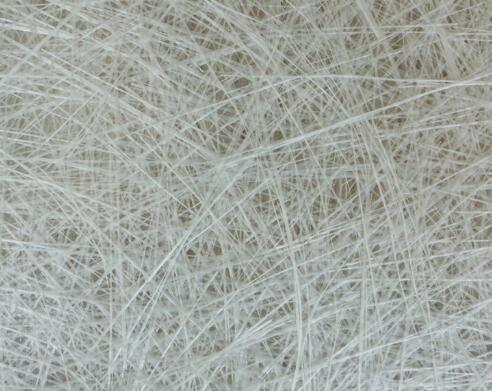

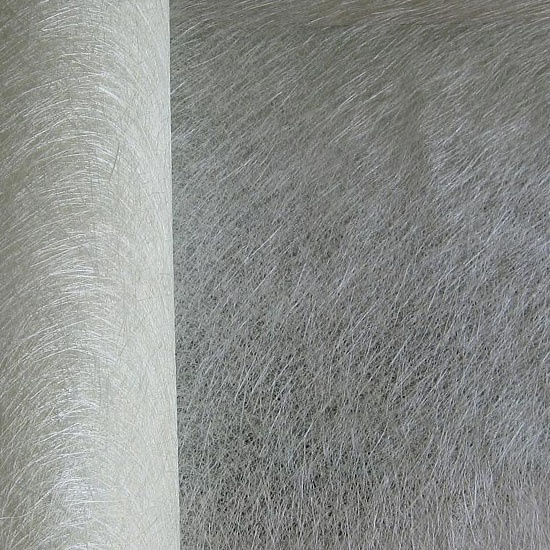

Chopped Strand Mat is a kind of reinforcing products which made from randomly distributed chopped strands with certain length held together by a powder or emulsion binder.

Applications

Chopped strand mat is suitable for hand lay-up, molding process, mechanical forming process etc., The product is widely used in different areas of FRP, automobile parts, boats, bath equipments, chemical storage tanks, pipes, construction materials, desks, etc.

Features

1. Good wet-out in resin

2. Multi-resin-compatible

3. Good tensile with flexibility

4. Highly soluble resin binder

5. Excellent fiber distribution

6. Uniform weight

7. Excellent translucency

Specification

Product Type

Specification

Area Weight (g/m2)

Width (mm)

Resin Compatibility

E-glass Powder

EP450 (200-900)

200g -- 900g

50--3200

UP、VE、EP

ECR Powder

EP450 (200-900)

200g -- 900g

50--3200

UP、VE、EP

E-glass Emulsion

EE450 (200-900)

200g -- 900g

50--3200

UP、VE、EP

ECR Emulsion

EE450 (200-900)

200g -- 900g

50--3200

UP、VE、EP

C-glass Powder

CP450 (200-900)

200g -- 900g

50--3200

UP、VE、EP

C-glass Emulsion

CE450 (200-900)

200g -- 900g

50--3200

UP、VE、EP

E-glass Powder

EP100(200-900)

100g -- 200g

50--3200

UP、VE、EP、PU

E-glass Emulsion

EE100 (200-900)

100g -- 200g

50--3200

UP、VE、EP、PU

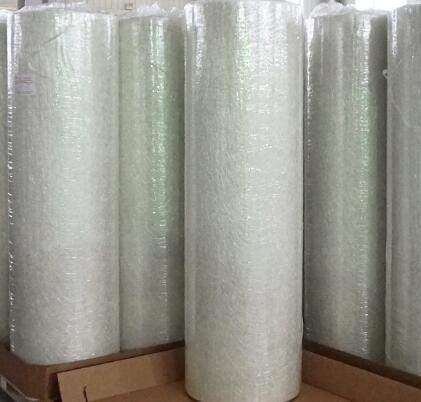

Packing

Chopped Strand mat could be produced into different widths. Each roll is wound on a suitable cardboard tube with insed diameter of 76mm or 100mm. Then put into a polyethylene bag, fastened the bag entrance and packed into a cardboard box. Upon to Customer's request, the product could be shipped either with carton package only or with pallet package. The products could be vertically or honzontally put on the pallets and fastened with packing straps and shrink film.

Storage

Chopped strand mat should be stored in a cool, dry, water-proof area. It is recommended that the room temperature and humidity be always maintained at 15℃ to 35℃ and 35% to 65% respectively. Please keep the product in its original packaging before being used, avoiding moisture.
