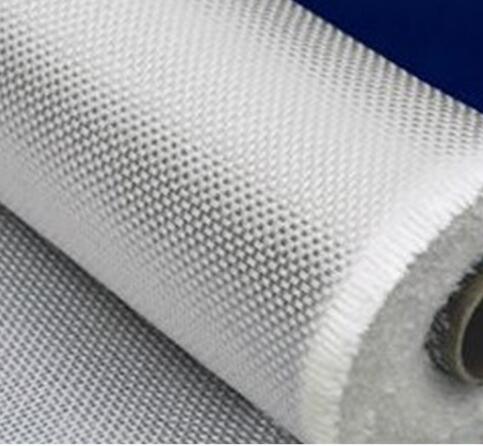

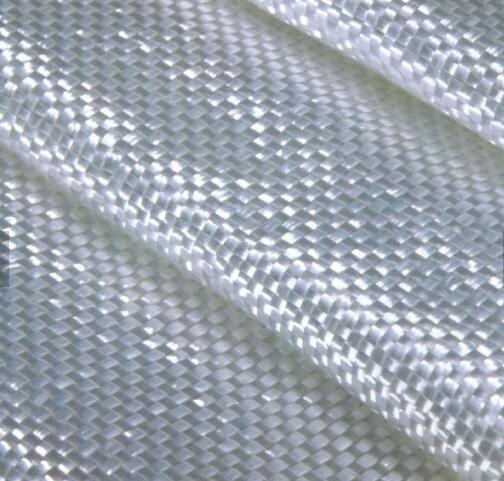

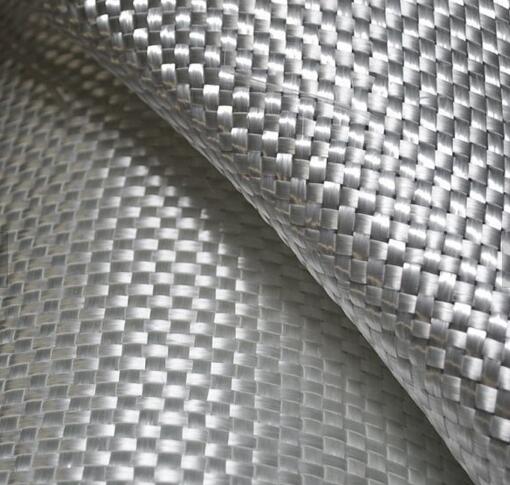

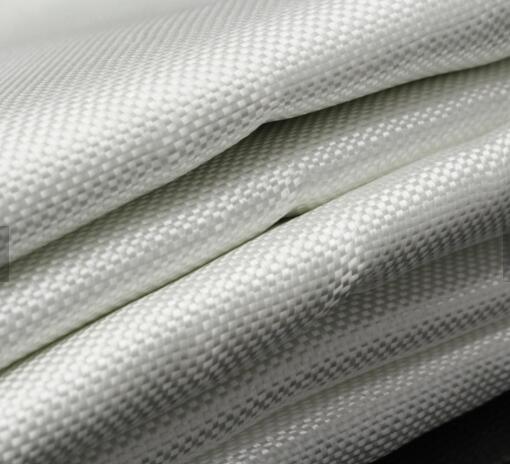

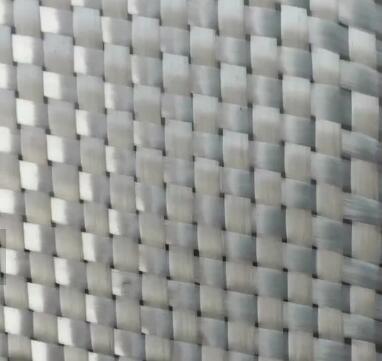

E-Glass Woven Rovings are bidirectional fabric made by interweaving direct rovings.
E-Glass Woven Rovings are compatible with unsaturated polyester, vinylester, epoxy and phenolic resins.
E-Glass Woven Rovings are a high-performance reinforcement widely used in hand lay up and robot processes to manufacture boats, vessels,plane and automotive parts, furniture and sports facilities.

Product Features

1. Warp and weft rovings aligned in a parallel and flat manner, resulting in uniform tension

2. Densely aligned fibers, resulting in high dimensional stability and making handling easy

3. Good moldability, fast and complete wet out in resins, resulting in high productivity

4. Good mechanical properties and high strength of parts

    Serial      No.

 Product No.

Area Weight g/m²

Weave

    Moisture Content (%)

Combustible Content(%)

ISO 3374

ISO 3344

ISO 1887

1

EWR270

261

Plain

≤0.15

0.40 ~ 0.80

3

EWR300A

300

Plain

≤0.15

0.40 ~ 0.80

4

EWR300B

294

Plain

≤0.15

0.40 ~ 0.80

5

EWR300C

308

Plain

≤0.15

0.40 ~ 0.80

6

EWR300D

295

Plain

≤0.15

0.40 ~ 0.80

7

EWR360

354

Plain

≤0.15

0.40 ~ 0.80

8

EWR360B

345

Plain

≤0.15

0.40 ~ 0.80

9

EWR400B

399

Plain

≤0.15

0.40 ~ 0.80

10

EWR400C

368

Plain

≤0.15

0.40 ~ 0.80

11

EWR450

444

Plain

≤0.15

0.40 ~ 0.80

12

EWR500C

504

Plain

≤0.15

0.40 ~ 0.80

13

EWR500T

522

Twill

≤0.15

0.40 ~ 0.80

14

EWR550

528

Twill

≤0.15

0.40 ~ 0.80

15

EWR580

576

Plain

≤0.15

0.40 ~ 0.80

16

EWR600A

601

Plain

≤0.15

0.40 ~ 0.80

17

EWR600B

632

Plain

≤0.15

0.40 ~ 0.80

18

EWR600D

612

Plain

≤0.15

0.40 ~ 0.80

19

EWR600E

600

Plain

≤0.15

0.40 ~ 0.80

20

EWR700

684

Plain

≤0.15

0.40 ~ 0.80

21

EWR770

840

Plain

≤0.15

0.40 ~ 0.80

23

EWR800B

864

Plain

≤0.15

0.40 ~ 0.80

24

EWR800C

840

Plain

≤0.15

0.40 ~ 0.80

25

EWR800D

847

Plain

≤0.15

0.40 ~ 0.80

26

EWR800E

816

Plain

≤0.15

0.40 ~ 0.80

27

EWR800F

810

Plain

≤0.15

0.40 ~ 0.80

28

EWR800G

816

Plain

≤0.15

0.40 ~ 0.80

29

EWR800T

830

Twill

≤0.15

0.40 ~ 0.80

30

EWR900

936

Plain

≤0.15

0.40 ~ 0.80

31

EWR100T

1008

Twill

≤0.15

0.40 ~ 0.80

Note: Woven Rovings are available with a width range of 50mm～3000mm and a weight range of 200g/m2 ~1600 g/m2 . Other specifications are also available on customer request.

Packaging

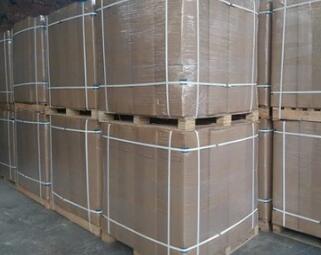

Woven Rovings are wound onto a paper tube which has an inside diameter of 89mm, and the roll has a diameter of 260mm. The roll is wrapped up with plastic film, and then packed in a cardboard box or wrapped up with kraft paper. The rolls are to be horizontally placed. For transportation the rolls can be loaded into a container directly or on pallets.

Storage

Unless otherwise specified, fiberglass products should be stored in a dry, cool and rain-proof area. The room temperature and humidity should be always maintained at 15℃~35℃ and 35%~65% respectively.
