Production Technique
Pertile is an acidic volcanic glass with pearl structure. After heating, it can expand to 12-15times, It possesses the characteristics of very light, thermal insulation,sound insulation, strong ab-sorption etc--- It is used in such industries as new build-ing materials, petroleum chemistry, metallurgy, casting, agriculture, food filter, and environment protection......
| Technical Data Sheet of perlite board and pipe section |
| Properties | Physical Index |
| Item | Unit | EASTM | ASTM-C610-95 |
| Density | kg/m3 | Min 196 | Min 192 |
| Max 220 | Max 224 |
| Use temperature | ℃ | -30~+650 | 27~+649 |
| Thermal conductivity, W/m/ K, max | 70℃ | 0.071 | 0.079 |
| 149℃ | 0.079 | 0.086 |
| 204℃ | 0.081 | 0.095 |
| 260℃ | 0.093 | 0.106 |
| 316℃ | 0.103 | 0.111 |
| 371℃ | 0.112 | 0.126 |
| Flexural strength, min | kPa | 331 | 310 |
| Compressive strength at 5%, deformation, min | kPa | 633 | 414 |
| Non-Combustibility |
| ok |
|
| Weight Loss by Tumbling, % loss in wieght after 10 minutes | max | 50 | 70 |
| Moisture content, % by weight | max | 3 | 10 |
| Water absorption rate, % by weight | max | 2 | - |
| Linear Shrinkage, % at 649℃ for 24 h, max | length | 1 | 2 |
| width | 1 | 2 |
| thickness | 2 | 8 |
| Surface burning characteristics |
|
|
|
| Flame spread | max | 0 | 0 |
| Smoke developed | max | 0 | 5 |
| Chloridion content |
| meet ASTM C795 |
|
| Standard size and packaging and Dimension tolerance |
| Class | Items | Sizes | Tolerances |
| Board (Slab) | Length (mm) | 500,600 | +3, -2 |
| Width (mm) | 300, 150 | +3, -2 |
| Thickness (mm) | 25---100 | +3, -2 |
| Pipe cover | Length (mm) | 500,600 | +3, -2 |
| Inside diameter(mm) | 16---3560 | +3, -2 |
| Thickness (mm) | 25---100 | +3, -2 |
| Standard packaging | Polythene bags inside and Cardboard cartons outside |
| Technical Data Sheet of perlite cement |
| Properties | Unit | Physical Index |
| Density | kg/m3 | ≤1500 |
| Maximum use temperature | ℃ | 650 |
| Thermal conductivity (At average 50±℃) | W/m K | ≤0.145 |
| Compressive strength | Kpa | ≥890 |
| Linear shrinkage (923k 16h) | % | ≤2.0 |

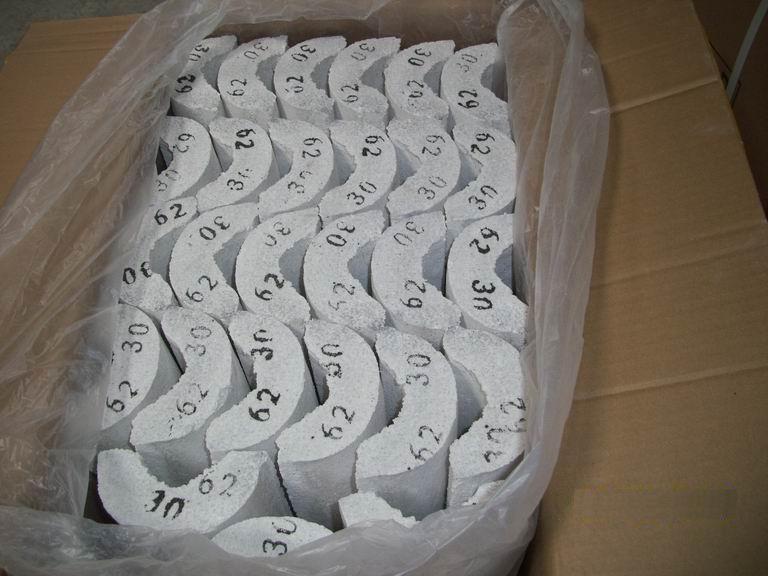

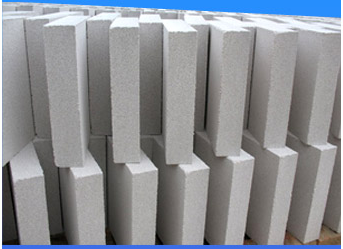

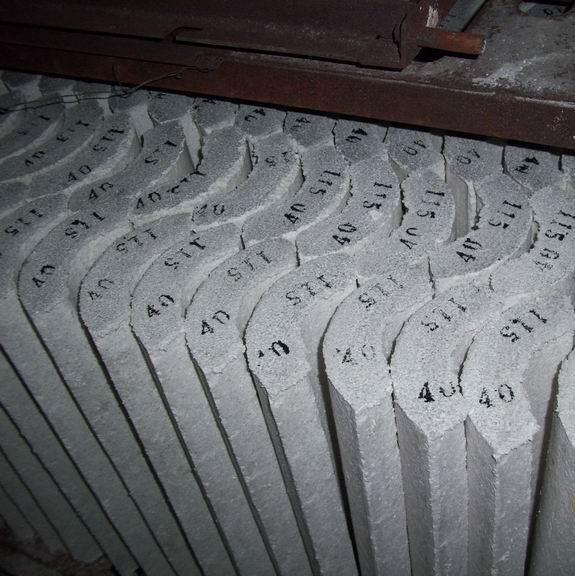

Product show
