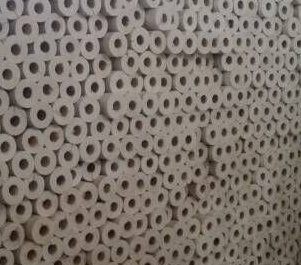

Ceramic fiber pipe covers is made of refractory fiber materials with standard thickness. It is made of refractory fiber and bond with low content of organic bond. With different refractory fiber, abio-bond and organic bond and mixing according to different scales, we can manufacture various fiber pipe which can be applicable for different temperatures. In some thermal equipments, there will be smoke generated when the bond in fiber pipe is burnt and the smoke will be disperses soon.

Product Characteristics

1. Excellent pressure resistance & long service life

2. Low thermal storage & low thermal conductivity

3. Non-crisp material ,excellent tensile

4. Accurate geometrical size & excellent level

5. Cut different angles & convenient construction

6. Excellent wind corrosion resistance

7. Continuous production, well-distributed fibers & excellent stability.

Typical Sizes

Pipe dia.: 22-630mm,  thickness: 20-200mm, length: 1000m, density: 150kg/m3

Technical specifications

                                     Type      Item

LT

STD

HP

HA

ST

HZ

Chemical Composition

Al₂O₃  (%)

40-44

≥45

47-49

52-57

52-57

52-57

Al₂O₃+SiO₂(%)

≥90

≥96

≥99

≥99

≥99

≥99

Fe₂O₃    (%)

0.7-1.5

≤1.2

≤0.2

≤0.2

≤0.2

≤0.2

Na₂O+K₂O (%)

3-5

≤0.5

≤0.2

≤0.2

≤0.2

≤0.2

Physical Properties

Diameter of Fibre

2~4

2~4

2~4

2~4

2~4

2~4

Density(kg/M³)

64-200

64-200

64-200

64-200

64-200

64-200

Temperature of use ℃

1000

1260

1300

1400

1450

1480

Max.

Melting Point(℃)

1700

1700

1700

1700

1700

1750

Rate of Liner Shrinkage on Heating

≤4        (1000℃x6h)

≤3        (1150℃x6h)

≤3           (1200℃x6h)

≤3        (1300℃x6h)

≤3        (1300℃x6h)

<3        (1350℃x6h)

Wind Erosion Resistance

~25

~25

~25

~25

~25

~25

Tensile Strength

≥0.3MPa

≥0.3MPa

≥0.3MPa

≥0.3MPa

≥0.3MPa

≥0.3MPa

(Bulk Weight 128kg/M³)

Thermal Conductivity  Bulk density（128kg/m3)

W/m.k

0.09（400°C)

0.09（400°C)

0.16（800°C)

0.16（800°C)

0.12（600°C)

0.12（800°C)

0.12（800°C)

0.12（800°C)

0.20（1000°C)

0.20（1000°C)

0.20（1000°C)

0.20（1000°C)

0.20（1000°C)

0.20（1000°C)
